TALOS 설치





Mac 기준



설정은

HA Proxy

- 192.168.1.200  (192.168.1.201~203 LB)

Control Plane

 - 192.168.1.201

 - 192.168.1.202

 - 192.168.1.203

Data Plane

 - 192.168.1.211

 - 192.168.1.212

 - 192.168.1.213





talosctl 설치

brew install siderolabs/tap/talosctl





작업용 디렉토리 생성

mkdir -p ~/talos/prod-cluster
cd ~/talos/prod-cluster



secrets 생성

talosctl gen secrets -o secrets.yaml



클러스터 config 생성

talosctl gen config prod https://192.168.1.200:6443 \
  --with-secrets secrets.yaml





controlplane.yaml

worker.yaml

talosconfig



contorlplane로 사용할 yaml을 control plane쪽에서 복사해 다음 부분 수정

- controlplane-1.yaml, controlplane-2yaml controlplane-3.yaml 으로 저장



machine:
    network:
      hostname: talos-cluster-controlplane-1
      interfaces:
      - interface: eth0
        dhcp: false
        addresses:
          - 192.168.1.201/24
        routes:
          - network: 0.0.0.0/0
            gateway: 192.168.1.1
      nameservers:
        - 8.8.8.8



  cluster:
        proxy:
            image: registry.k8s.io/kube-proxy:v1.34.1 # The container image used in the kube-proxy manifest.
            disabled: true



work부분도  복사해 수정

- work-1.yaml, work-2.yaml, work-3.yaml 으로 저장

machine:
    network:
      hostname: talos-cluster-dataplane-1
      interfaces:
      - interface: eth0
        dhcp: false
        addresses:
          - 192.168.1.212/24
        routes:
          - network: 0.0.0.0/0
            gateway: 192.168.1.1
      nameservers:
        - 8.8.8.8





control plane 적용

talosctl apply-config --insecure -n 192.168.1.202 -f controlplane-1.yaml
talosctl apply-config --insecure -n 192.168.1.202 -f controlplane-2.yaml
talosctl apply-config --insecure -n 192.168.1.203 -f controlplane-3.yaml



data plane 적용

talosctl apply-config --insecure -n 192.168.1.211 -f worker-1.yaml
talosctl apply-config --insecure -n 192.168.1.212 -f worker-2.yaml
talosctl apply-config --insecure -n 192.168.1.213 -f worker-3.yaml





bootstrap

1번만 진행

talosctl --talosconfig talosconfig bootstrap -n 192.168.1.201





kubeconfig 받아서 kubectl 연결

talosctl --talosconfig talosconfig kubeconfig -n 192.168.1.201

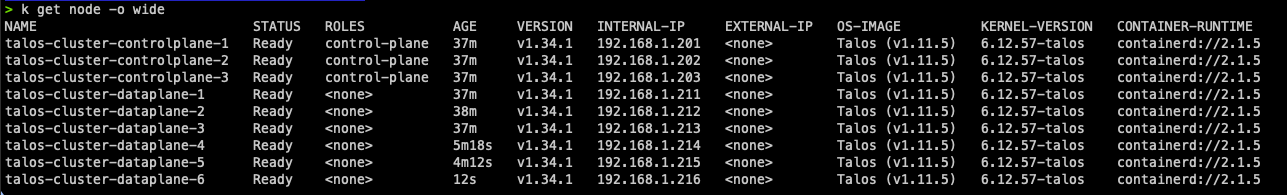

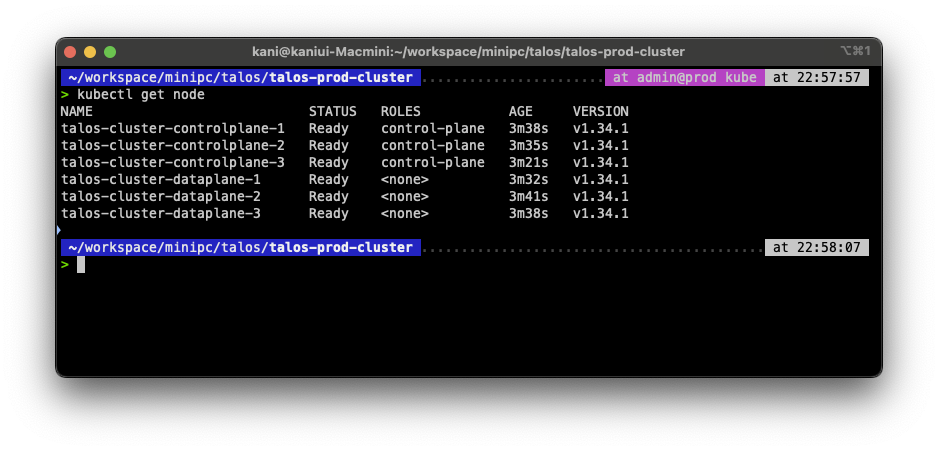

kubectl get nodes -o wide





마지막으로 cilium 설치

(- talos 설정시 kube proxy를 제거)

helm install \
    cilium \
    cilium/cilium \
    --version 1.18.4 \
    --namespace kube-system \
    --set ipam.mode=kubernetes \
    --set kubeProxyReplacement=true \
    --set securityContext.capabilities.ciliumAgent="{CHOWN,KILL,NET_ADMIN,NET_RAW,IPC_LOCK,SYS_ADMIN,SYS_RESOURCE,DAC_OVERRIDE,FOWNER,SETGID,SETUID}" \
    --set securityContext.capabilities.cleanCiliumState="{NET_ADMIN,SYS_ADMIN,SYS_RESOURCE}" \
    --set cgroup.autoMount.enabled=false \
    --set cgroup.hostRoot=/sys/fs/cgroup \
    --set k8sServiceHost=localhost \
    --set k8sServicePort=7445 \
    --set=gatewayAPI.enabled=true \
    --set=gatewayAPI.enableAlpn=true \
    --set=gatewayAPI.enableAppProtocol=true

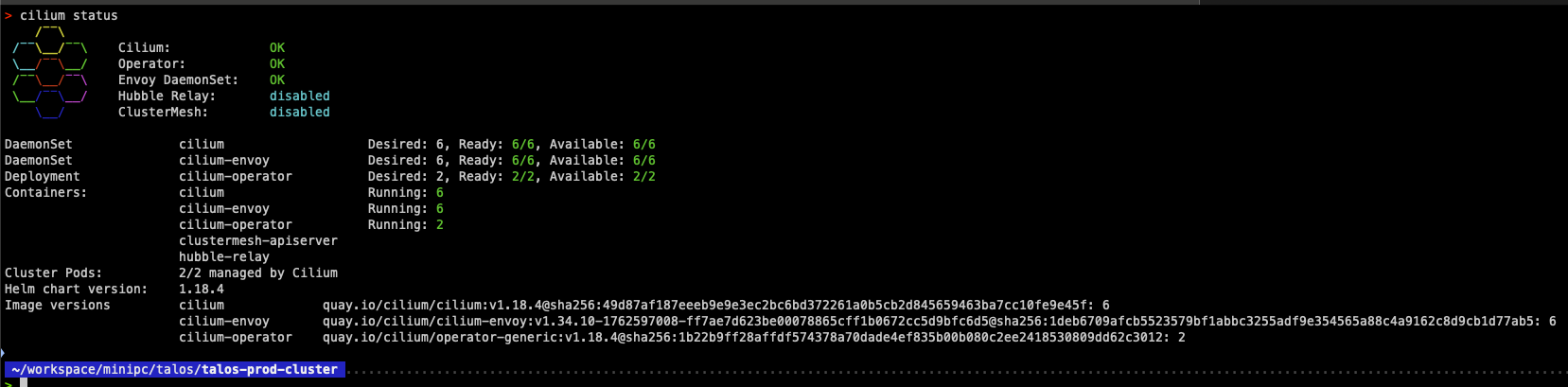

cilium status







이후 워커 노드 3대 더 추가 (dataplane 4~6)
